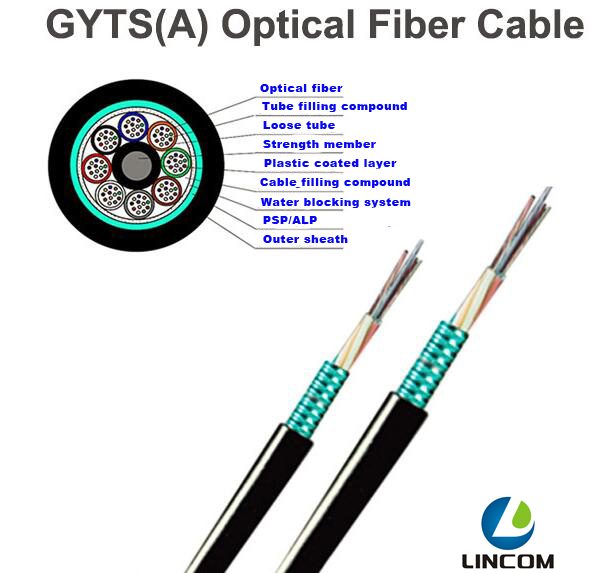

GYTS(A) cable
Inquery
Description
Inquery
| Application | Characteristics | |||||||||
| ☆ Adopted to Outdoor distribution | ☆.Steel wire strength filler protect tube fiber steel tape armord | |||||||||
| ☆. Suitable for aerial pipeline laying method | ☆.Good ultra violet radiation resistant property | |||||||||
| ☆. Long distance and local area network communication | ☆.Good moisture-resistance | |||||||||
| Technical parameters: | ||||||||||
| Cable count | Out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum allowable Crush load（N/100mm) | Min bending radius(MM) | Suitable temperature | ||||
| (Fibers) | （MM) | （KG) | Short term | Long term | Short term | Long term | Short term | Long term | （℃） | |
| 2-30 | 9.6 | 102.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 32-36 | 10.2 | 125.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 38-60 | 10.9 | 129.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 62-72 | 11.6 | 160.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 74-96 | 13.2 | 189.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 98-120 | 14.7 | 225.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 122-144 | 16.2 | 261.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 146-216 | 16.2 | 261.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
