Indoor Drop Cable

Inquery

Description Inquery

Description

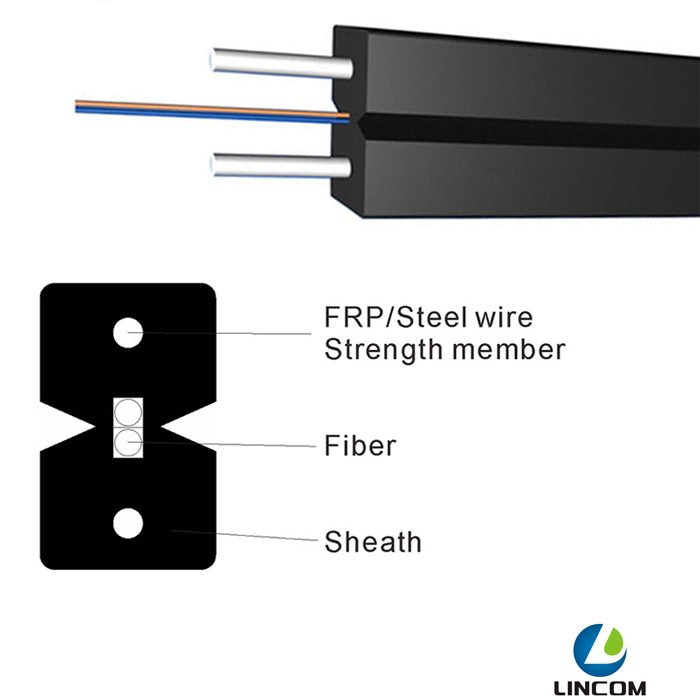

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.

·Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
1	(2.0±0.2) ×(5.0±0.2)	20	60/120	300/1000	15/30
2	(2.0±0.2) ×(5.0±0.2)	20	60/120	300/1000	15/30
3	(2.0±0.2) ×(5.6±0.2)	21	60/120	300/1000	15/30
4	(2.0±0.2) ×(5.6±0.2)	22	60/120	300/1000	15/30
