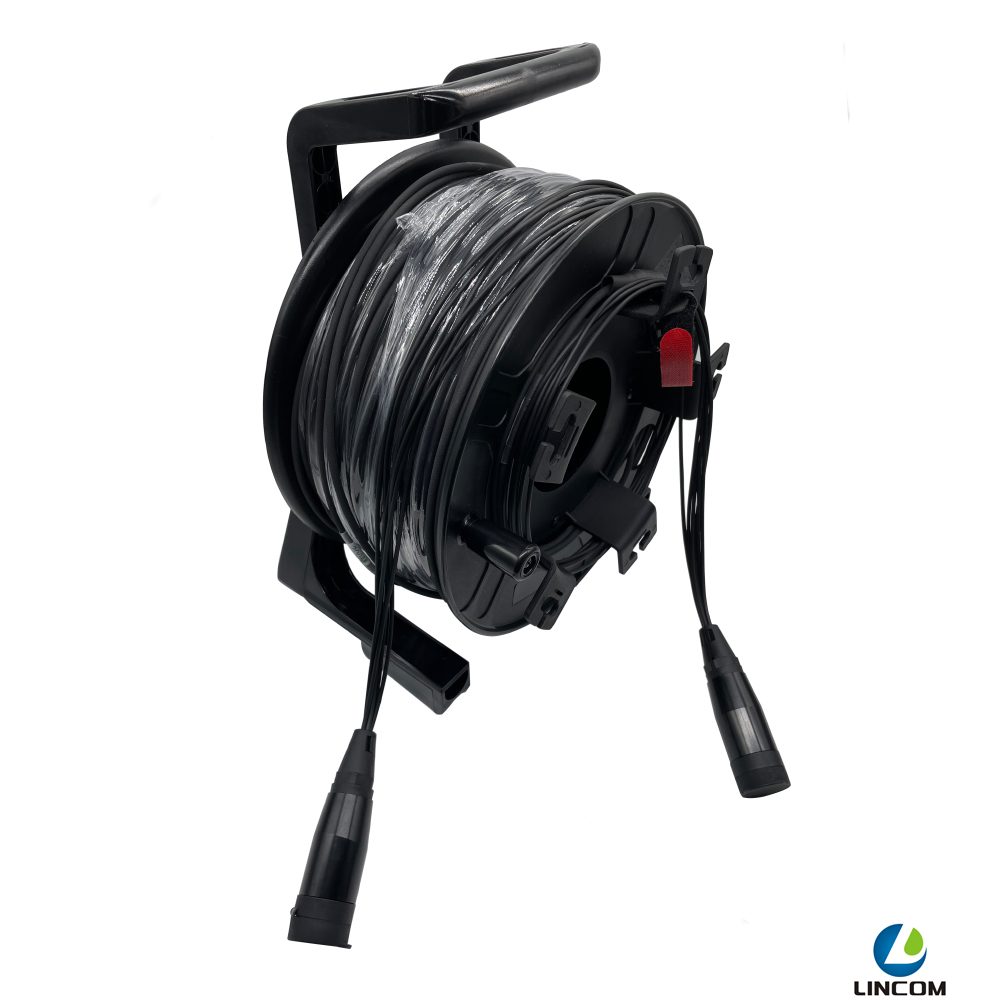

Description:

Fiber Optical Tactical Cables are designed with a rugged, crush resistant, durable jacket for superior flexibility and abrasion resistance across a wide temperature range. These cables are able to withstand the harshest conditions - allowing for field deployable applications such as military, electronic news gathering, outdoor broadcast, law enforcement, industrial environments, etc.

Feature:

•  Tight buffer fiber ease of stripping.

•  The jacket is anti-aging, anti-abrasion.

•  Kevlar improves the tensile strength and mechanical intensity.

•  Kevlar make cable have excellent tensile strength.

•  All dielectric structure protect it from electromagnetic influence.

•  Good mechanical and environmental characteristics.

•  Military communication system cable distribution.

•  Excellent for use in deployment/retrieval applications.

•  Communication between radars or oil field,mining work place.

Specification:

PCD235



Capacity depends on different outer diameter of cables
Diameter	Length	Diameter	Length
Φ3.0mm	269m	Φ6.5mm	57m
Φ5.0mm	97m	Φ7.0mm	49m
Φ6.0mm	67m	Φ8.0mm	38m

PCD310

Capacity depends on different outer diameter of cables
Diameter	Length	Diameter	Length
Φ3.0mm	628m	Φ8.0mm	88m
Φ5.0mm	226m	Φ9.0mm	70m
Φ6.0mm	157m	Φ10.0mm	57m
Φ6.5mm	134m	Φ11.0mm	47m
Φ7.0mm	115m	Φ14.0mm	29m



























PCD380

Capacity depends on different outer diameter of cables
Diameter	Length	Diameter	Length
Φ6.0mm	304m	Φ11.0mm	90m
Φ7.0mm	223m	Φ14.0mm	56m
Φ8.0mm	171m	Φ15.0mm	49m
Φ9.0mm	135m	Φ16.5mm	40m
Φ10.0mm	109m	Φ18.0mm	34m



























Part Number

4 Fibers

 4Fibers LC/UPC-LC/UPC G657A1

 4Fibers LC/UPC-LC/UPC OM3-300



6 Fibers

-Length: 4Fibers LC/UPC-LC/UPC G657A1

-Length: 4Fibers LC/UPC-LC/UPC OM3-300



8 Fibers

8Fibers LC/UPC-LC/UPC G657A1

8Fibers LC/UPC-LC/UPC OM3-300



12 Fibers

12Fibers LC/UPC-LC/UPC G657A1

12Fibers LC/UPC-LC/UPC OM3-300
