Adapter

Ordering options

1) Adapter Type: SC, LC, ST,FC, E2000.
2) Ferrule End-face: PC, UPC, APC
3) Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Type: Simplex, Duplex ,Quad
5) Flangless Option.

Inquery

A^-A⁺

Description Inquery

Application

• Telecommunication Networks

• FTTX, FTTH

• LAN, WAN, CATV and MAN applications

• Fiber Communication Systems

• Data Processing Networks

• Industrial and Military applications

Features:

• Simplex, duplex or quad versions

• Singlemode and Multimode supply

• Phosphor bronze or Zirconia ceramic sleeve

• Low insertion and back reflection loss

• High precision alignment sleeve

• Compact design

• Comply to ROHS requirements

Technical specifications and ordering information:

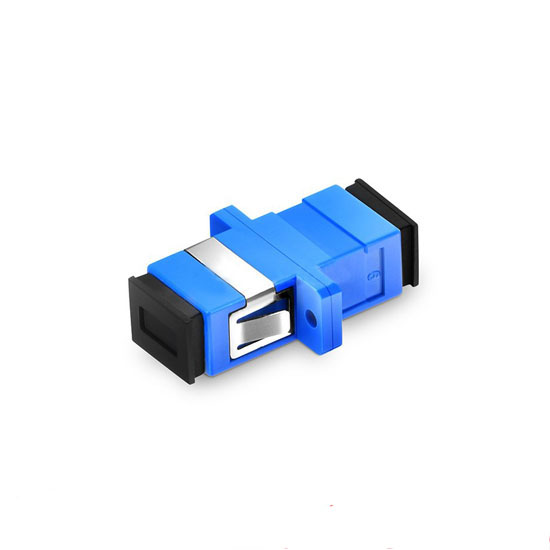

Parameter	Unit	SC ADAPTER
		SINGLEMODE		MULTIMODE
		UPC	APC	OM2	OM3
Type	Simplex
Type	Duplex
Color		Blue	Green	Beige	Aqua
Insertion Loss	dB	≤0.2		≤0.3
Sleeve Part		Zirconia ceramic		Phospor bronze
Casing		Plastic
Durability	dB	≤0.1dB typical change, 500 matings
Operating Temperature	°C	From -40 to +80

Parameter	Unit	LC ADAPTER
		SINGLEMODE		MULTIMODE
		UPC	APC	OM2	OM3
Type	Simplex
Type	Duplex
Type	Quad
Color		Blue	Green	Beige	Aqua
Insertion Loss	dB	≤0.2		≤0.3
Sleeve Part		Zirconia ceramic		Phospor bronze
Casing		Plastic
Durability	dB	≤0.1dB typical change, 500 matings
Operating Temperature	°C	From -40 to +80

Parameter	Unit	ST and FC ADAPTER
		SINGLEMODE		MULTIMODE
		ST	FC	ST	FC
Type	Simplex
Type	Duplex
Type	Quad
Color		Metallic
Insertion Loss	dB	≤0.2		≤0.3
Sleeve Part		Zirconia ceramic		Phospor bronze
Casing		Metal
Durability	dB	≤0.1dB typical change, 500 matings
Operating Temperature	°C	From -40 to +80

Parameter	Unit	E2000 ADAPTERS
		SINGLEMODE		MULTIMODE
		UPC	APC
Type	Simplex
Color		Blue	Green	Beige
Insertion Loss	dB	≤0.2		≤0.3
Sleeve Part		Zirconia ceramic
Casing		Plastic
Durability	dB	≤0.1dB typical change, 500 matings
Operating Temperature	°C	From -40 to +80
