PLC and FBT splitter

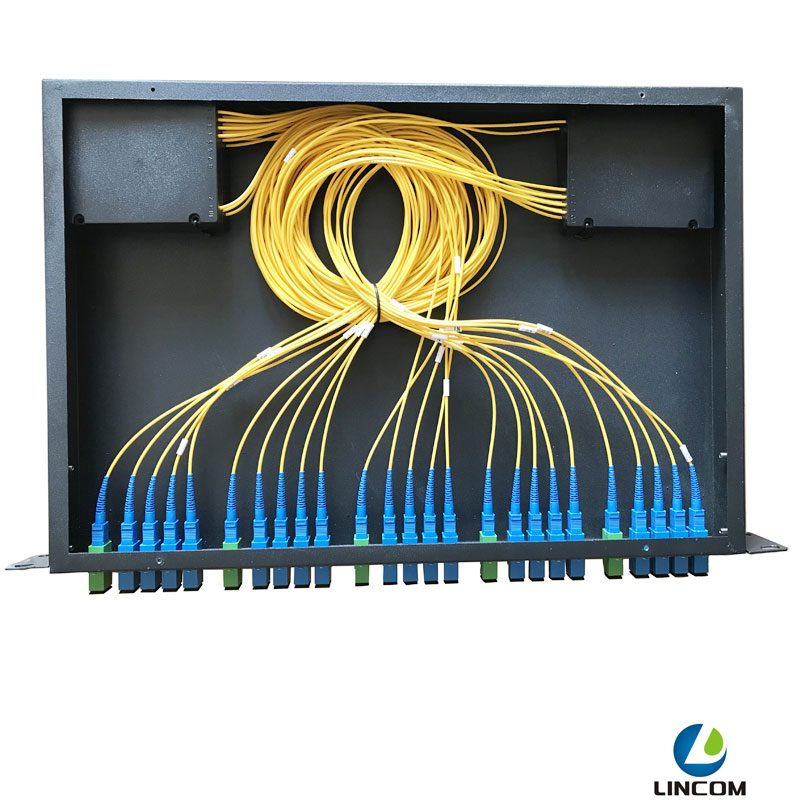

Rack PLC Splitter

Inquery
Description Inquery

Description:

PLC (Planar Lightwave Circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirement.



We can provide customized designs to meet specialized feature applications, and also offers

modulars assemblies that integrated other components to form a full function module.



Applications:

• FTTH & FTTx

• PON & CATV System

• Telecommunication Network and Fiber Optic Sensors



Specifications (1×N PLC Splitter)

Parameters

1x2

1x4

1x8

1x16

1x32

1x64

Operating Wavelength(nm)

1260~1650

IL(dB)

Max (P/S)

3.8/4.0

7.2/7.4

10.3/10.7

13.513.7

16.5/16.9

20.5/21

Loss Uniformity (dB)

Max

0.4

0.6

0.8

1.0

1.5

2.0

PDL(dB)

Max

0.3

0.3

0.3

0.3

0.3

0.3

Directivity (dB)

Min

55

RL(dB)

Min

55

Operating Temperature(°C)

-40~+85

Storage Temperature(°C)

-40~+85



Specifications (2×N PLC Splitter)

Parameters

2x2

2x4

2x8

2x16

2x32

2x64

Operating Wavelength(nm)

1260~1650

IL(dB)

Max (P/S)

3.9/4.2

7.3/7.6

10.5/11

14.4/14.6

17.4/17.9

21.0/21.5

Loss Uniformity (dB)

Max

0.6

1.0

1.2

1.5

1.8

2.2

PDL(dB)

Max

0.3

0.3

0.3

0.3

0.3

0.3

Directivity (dB)

Min

55

RL(dB)

Min

55

Operating Temperature(°C)

-40~+85

Storage Temperature(°C)

-40~+85
