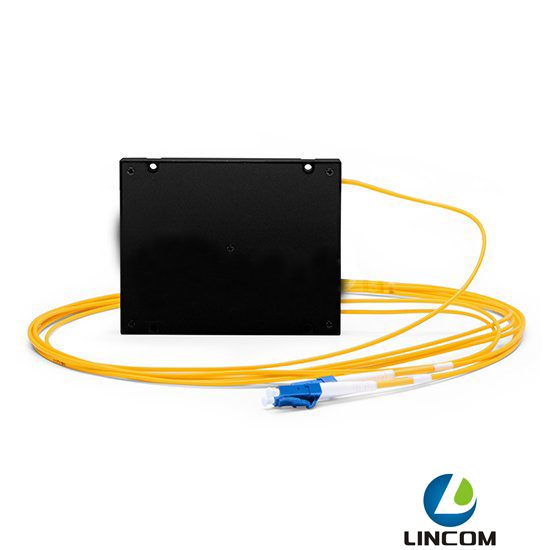

ABS PLC splitter

Inquery

Description Inquery

Description:

PLC (Planar Lightwave Circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirement.

We can provide customized designs to meet specialized feature applications, and also offers

modulars assemblies that integrated other components to form a full function module.

Applications:

• FTTH & FTTx

• PON & CATV System

• Telecommunication Network and Fiber Optic Sensors

Specifications (1×N PLC Splitter)

Parameters		1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)		1260~1650
IL(dB)	Max (P/S)	3.8/4.0	7.2/7.4	10.3/10.7	13.513.7	16.5/16.9	20.5/21
Loss Uniformity (dB)	Max	0.4	0.6	0.8	1.0	1.5	2.0
PDL(dB)	Max	0.3	0.3	0.3	0.3	0.3	0.3
Directivity (dB)	Min	55
RL(dB)	Min	55
Operating Temperature(°C)		-40~+85
Storage Temperature(°C)		-40~+85

Specifications (2×N PLC Splitter)

Parameters		2x2	2x4	2x8	2x16	2x32	2x64
Operating Wavelength(nm)		1260~1650
IL(dB)	Max (P/S)	3.9/4.2	7.3/7.6	10.5/11	14.4/14.6	17.4/17.9	21.0/21.5
Loss Uniformity (dB)	Max	0.6	1.0	1.2	1.5	1.8	2.2
PDL(dB)	Max	0.3	0.3	0.3	0.3	0.3	0.3
Directivity (dB)	Min	55
RL(dB)	Min	55
Operating Temperature(°C)		-40~+85
Storage Temperature(°C)		-40~+85
