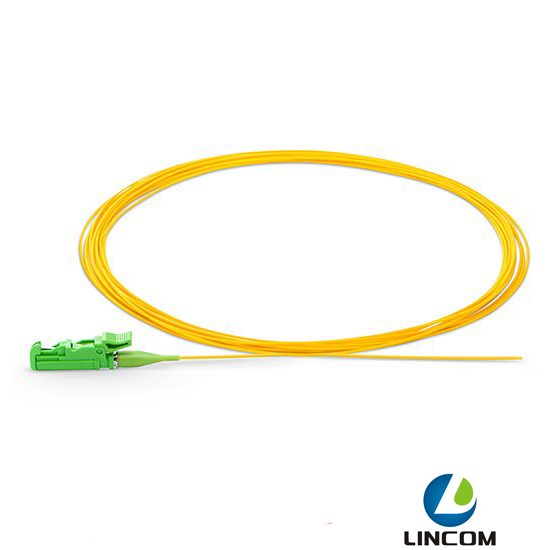

Pigtails

Ordering options

1) Connector type: FC, SC, LC, ST ,E2000,MPO/MTP,MTRJ,MU,SMA.
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm, φ1.6mm, φ1.8mm, φ2.4mm
6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH

8) Jacket color: OS1/OS2: Yellow, OM1: Orange, OM2: Orange,OM3: Aqua,OM4: Aqua,

Inquery

A^-A⁺

Description Inquery

Applications

Fiber to The Point (FTTX)
FTTH (Fiber To The Home)
PON (Passive Optical Network)
LAN CATV (Cable TV)
Measure Equipment

Features

Good Uniformity and Low Insertion Loss
Low Polarization Dependent Loss
Excellent Environmental Adaptability
Better Mechanical Character
Stability Telecordia GR-468 and GR-325

Technical Specifications

Fiber Type Maximum Insersion loss Minimum Reflectance

Singlemode UPC 0.3 dB -55 dB

Singlemode APC 0.2 dB -65 dB

Multimode OM1 0.25 dB -25 dB

Multimode OM3/OM4 0.2 dB -25 dB
