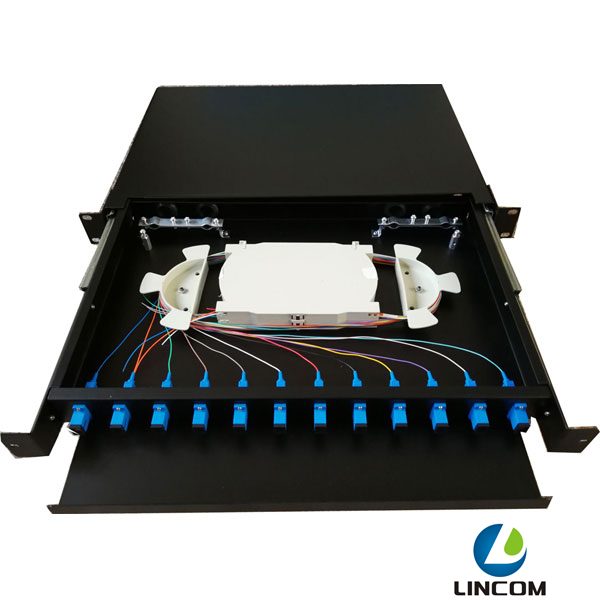

Fiber Termination Box-Pulling Type
Inquery
Description
Inquery
- Name: Pulling Type Rack ODF
- PN: TESODF02-A00
- Type: 19inch
- Material: Cold rolled sheet-SPCC.
- Surface Treatment: Spray
- Thickness: 1.0mm
- Port QYT: 4, 8, 12, 24, 48,
- Connector Type: SC, FC, LC, ST
- Ambient Temp：-25℃～+55℃
- Relative Humidity： ≤85%
- Atmospheric Pressure： 70~106Kpa；
- Insulation Resistance：＞2×104MΩ/500VDC
- Dielectric Breakdown Strength：15KDC/1min
|
No. |
Name |
PN |
Installation |
Dimension（mm） H*L*W |
Ports |
|
1 |
ODF12 |
TESODF02-A12SC |
Rack mounted |
1U 45*483*310 |
12 Simplex |
|
2 |
ODF12 |
TESODF02-A12SC |
1U 45*483*310 |
12 Duplex |
|
|
3 |
ODF12 |
TESODF02-A12ST |
1U 45*483*310 |
12 Simplex |
|
|
4 |
ODF24 |
TESODF02-A24SC |
1U 45*483*310 |
24 Simplex |
|
|
5 |
ODF24 |
TESODF02-A24SC |
1U 45*483*310 |
24 Duplex |
|
|
6 |
ODF24 |
TESODF02-A24ST |
1U 45*483*310 |
12 Simplex |
|
|
7 |
ODF36 |
TESODF02-A36XX |
2U 90*483*310 |
36 Simplex |
|
|
8 |
ODF48 |
TESODF02-A48XX |
2U 90*483*310 |
48 Duplex |
|
|
9 |
ODF72 |
TESODF02-A72XX |
2U 90*483*310 |
72 Simplex |
