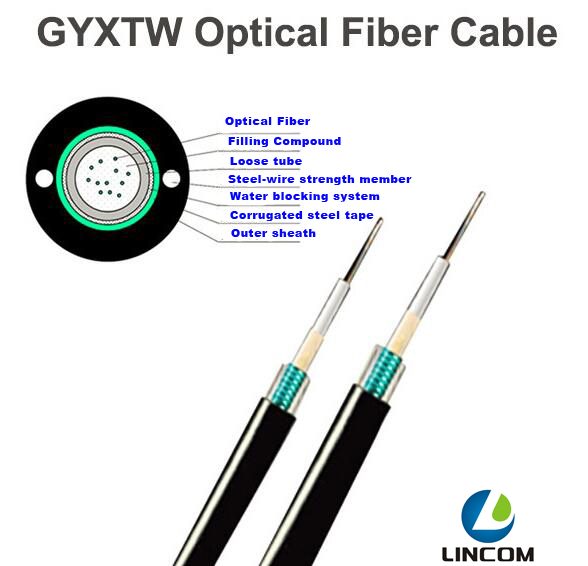

GYXTW outdoor optical cable

Inquery

Description Inquery

Application				Characteristics
☆.Adopted to Outdoor distribution				☆.Steel-wire parallel member filler protect tube fiber steel tape amored
☆.Suitable for aerial pipeline laying method				☆.Excellent mechanical and environmental performance
☆.Long distance and local area network communication				☆.Adopt optic fiber ribbon compact structure light weight

Technical parameters:
Cable count	Out sheath diameter	Weight	Minimum allowable Tensile strength(N)		Minimum allowable Crush load（N/100mm)		Min bending radius(MM)		Suitable temperature
（F)	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
4	8.0±0.2	65.00	1500	600	1000	300	20D	10D	-40+60
6	8.0±0.2	65.00	1500	600	1000	300	20D	10D	-40+60
8	8.0±0.2	65.00	1500	600	1000	300	20D	10D	-40+60
10	8.0±0.2	65.00	1500	600	1000	300	20D	10D	-40+60
12	8.0±0.2	65.00	1500	600	1000	300	20D	10D	-40+60
