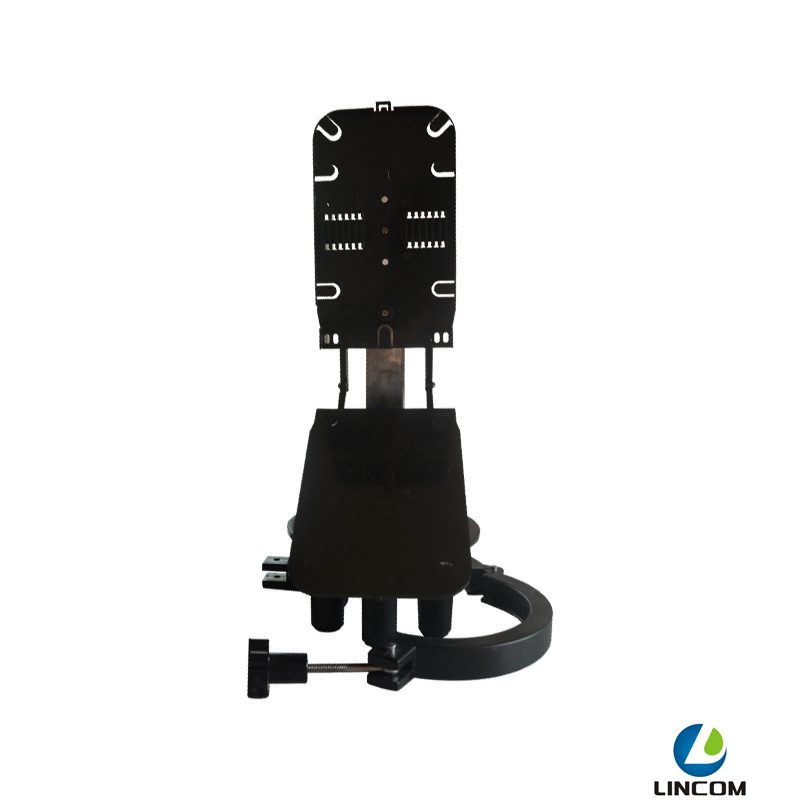

3 in 3 out Fiber Optic Dome Joint Closure

Inquery

A^-A⁺

Description Inquery

Features:

Suitable for ordinary fiber and ribbon fiber
Can be reopened
Can be fixed by metal work
Clear optical fiber cable
Closure body is made by Super ABS material, and the bolt was made in stainless steel
Great corrosion resistance
Suitable for any harsh environment
Anti-lighting

Applications:

Aerial-hanging
Wall-mounting
Direct-buried
Duct-mounting

Parameter:

Operating Temperature	-40°C~+65°C
Relative humidity	≤95%(40°C)
Atmospheric pressure	70kpa-106kpa
Connector loss (insert, repeat)	≤0.5db
Mechanical Durability Test	≥1000 times
Installation way	aerial mounted, underground buried mounted, conduit mounted, wall mounting
Warranty time	30 years

Installation procedure:

Open the closure
Fix the cable and check its length in the closure
Strip off the cable and cable jacket
Seek out the cable cores and get preparation for cable fixation
Fix the strengthen cores and reorganize the extra cores
Fix the cable
Arrange the splice protective tube and fiber
Complete inspection
Install the dome.

Product Name	Entry & Exit	Max Capacity	(L×W×H)	Cable Diameter	Sealing Structure
Joint Closure	3/3	96	44x18x12cm	Φ7-Φ15	Silicon gum material Sealing
