Fiber Optic Patch Cord

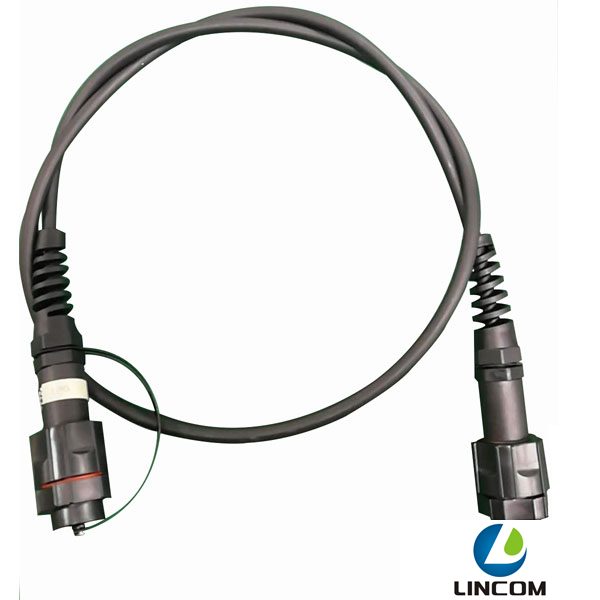

Outdoor MPO/MTP ODVA

Inquery
Description Inquery

Applications



  • Fiber to The Point (FTTX)
  • FTTH (Fiber To The Home)
  • PON (Passive Optical Network)
  • LAN CATV (Cable TV)
  • Measure Equipment



Features



  • Good Uniformity and Low Insertion Loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Adaptability
  • Better Mechanical Character
  • Stability Telecordia GR-468 and GR-325





Ordering options



1) Connector type: FC, SC, LC, ST ,E2000,MPO/MTP,MTRJ,MU,SMA.
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm, φ1.6mm, φ1.8mm, φ2.4mm
6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH

8) Jacket color: OS1/OS2: Yellow, OM1: Orange, OM2: Orange,OM3: Aqua,OM4: Aqua,

Buffered fiber (pigtail): Blue



Technical Specifications



Fiber Type               Maximum Insersion loss           Minimum Reflectance

Singlemode UPC                  0.3 dB                                         -55 dB

Singlemode APC                  0.2 dB                                         -60 dB

Multimode OM1                   0.25 dB                                       -25 dB

Multimode OM3/OM4         0.2 dB                                    -25 dB
