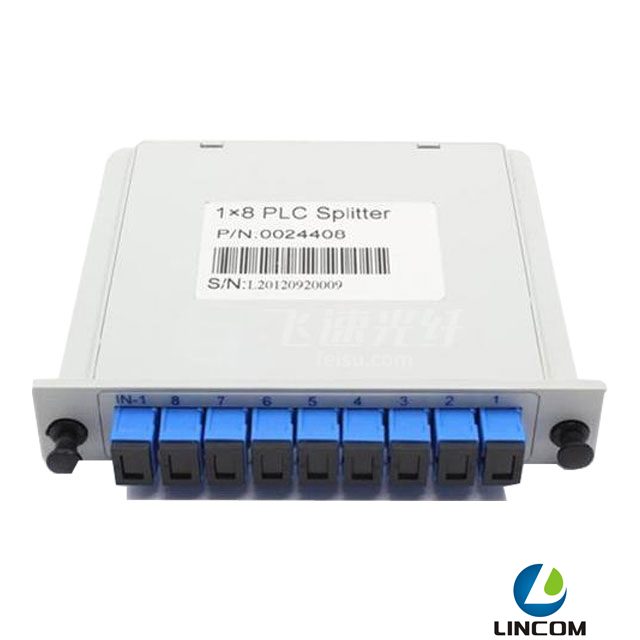

Blade LGX PLC splitter
InqueryDescription:
PLC (Planar Lightwave Circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirement.
We can provide customized designs to meet specialized feature applications, and also offers
modulars assemblies that integrated other components to form a full function module.
Applications:
• FTTH & FTTx
• PON & CATV System
• Telecommunication Network and Fiber Optic Sensors
Specifications (1×N PLC Splitter)
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
IL(dB) |
Max (P/S) |
3.8/4.0 |
7.2/7.4 |
10.3/10.7 |
13.513.7 |
16.5/16.9 |
20.5/21 |
|
Loss Uniformity (dB) |
Max |
0.4 |
0.6 |
0.8 |
1.0 |
1.5 |
2.0 |
|
PDL(dB) |
Max |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Directivity (dB) |
Min |
55 |
|||||
|
RL(dB) |
Min |
55 |
|||||
|
Operating Temperature(°C) |
-40~+85 |
||||||
|
Storage Temperature(°C) |
-40~+85 |
||||||
Specifications (2×N PLC Splitter)
|
Parameters |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
IL(dB) |
Max (P/S) |
3.9/4.2 |
7.3/7.6 |
10.5/11 |
14.4/14.6 |
17.4/17.9 |
21.0/21.5 |
|
Loss Uniformity (dB) |
Max |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
|
PDL(dB) |
Max |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Directivity (dB) |
Min |
55 |
|||||
|
RL(dB) |
Min |
55 |
|||||
|
Operating Temperature(°C) |
-40~+85 |
||||||
|
Storage Temperature(°C) |
-40~+85 |
||||||
